Siemens PLC Controller and SCADA System Integration Process

In This Article we are going to see How to Create Graphics Page, Trend Page, and other Important Settings in SIEMENS DESIGO-CC SCADA System.

• This SCADA System is Only suitable for SIEMENS BUILDING AUTOMATION SYSTEMS and we are going to use SIEMENS DDC PLC Controller (PXC Series) and SIEMENS WEB Controller (PXG Series).

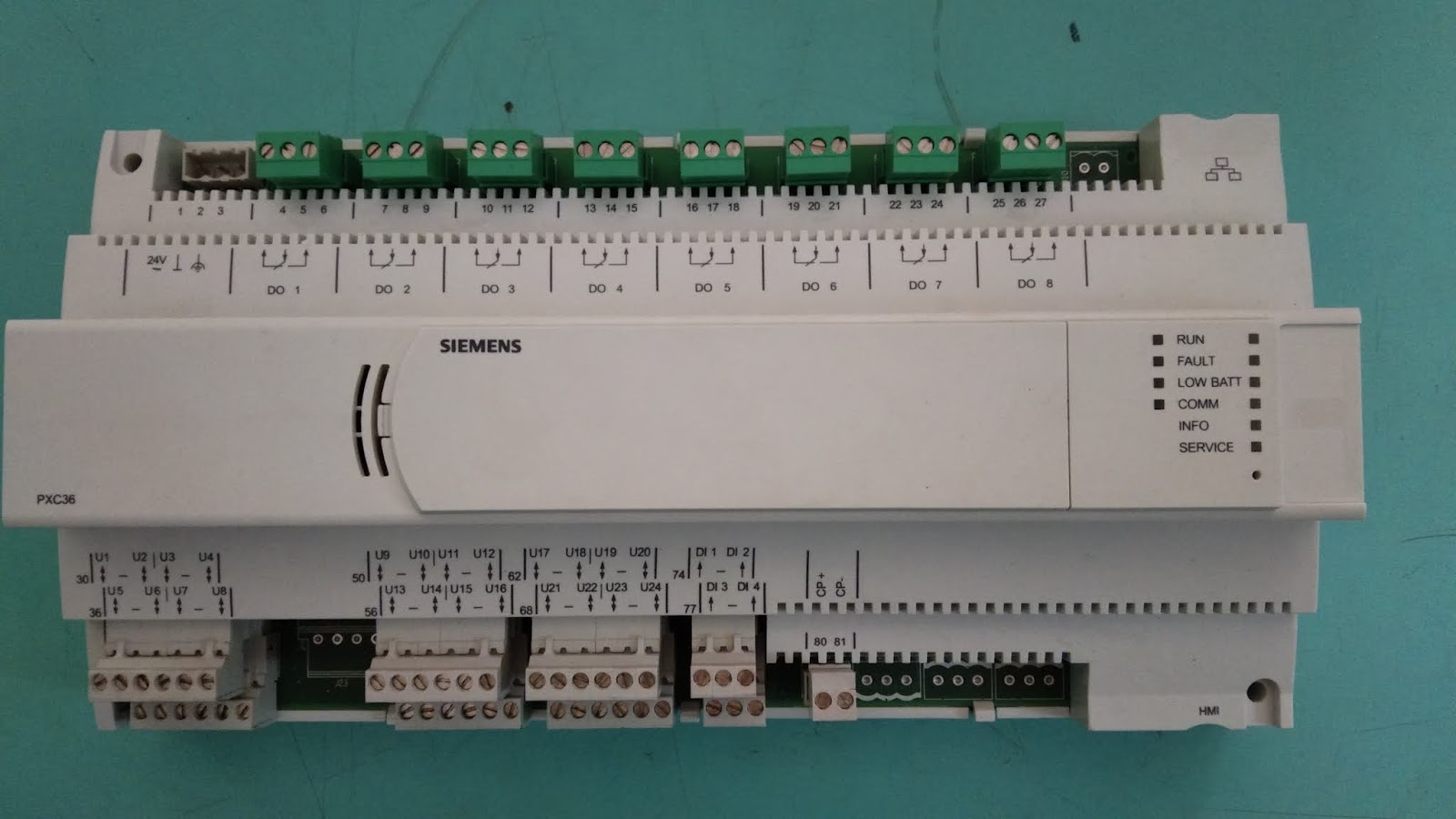

Siemens PXC 36 ED Controller

PXG WEB INTERFACE

• And now we are going to see Full SCADA Design Step by Step with Picture.

Login Steps

Step 1 : Open the Google chrome Browser and Enter the WEB Controller IP Address in Search Bar for  e.g 192.168.1.5

Step 2 : After Enter the IP Address the SIEMENS SCADA System Graphical Login Page will Pop-on the Screen.

Step 3 : And Enter the USER NAME & PASSWORD.

Step 4 : After Enter the User Name and Password in the Dialog Box click Log in Button on that Page.

Controller Integration Steps

Step 5 : Next Process to INTEGRATE the "Controller & Web" Device.

Step 6 : Click the Tool Symbol on the Right Conner , its show Three options ( Full screen,Tools,Settings)

Step 7 : Select the 2nd option "Tools" menu.

Step 8 : After Enter the Tools option its show ( Configure graphic , Export file , Import file , Enable/Disable graphic & kiosks , Define startup page , Configure Kiosks , and Data point integration ).

Baca Juga

• Siemens PXG3 BACnet router connects a BACnet/IP network
• Siemens Building Automation SCADA System (Create Graphics Page) Part-2
• Siemens PLC Controller and SCADA System Integration Process

Select "Data point integration" option.

Step 9 :  After Select the"Data point integration" option , its open new window

Step 10 : Choose the Template and Enable (Select the Tick box) the "Site01'AS01".

Step 11 : Select the "Extended Operation" Template.

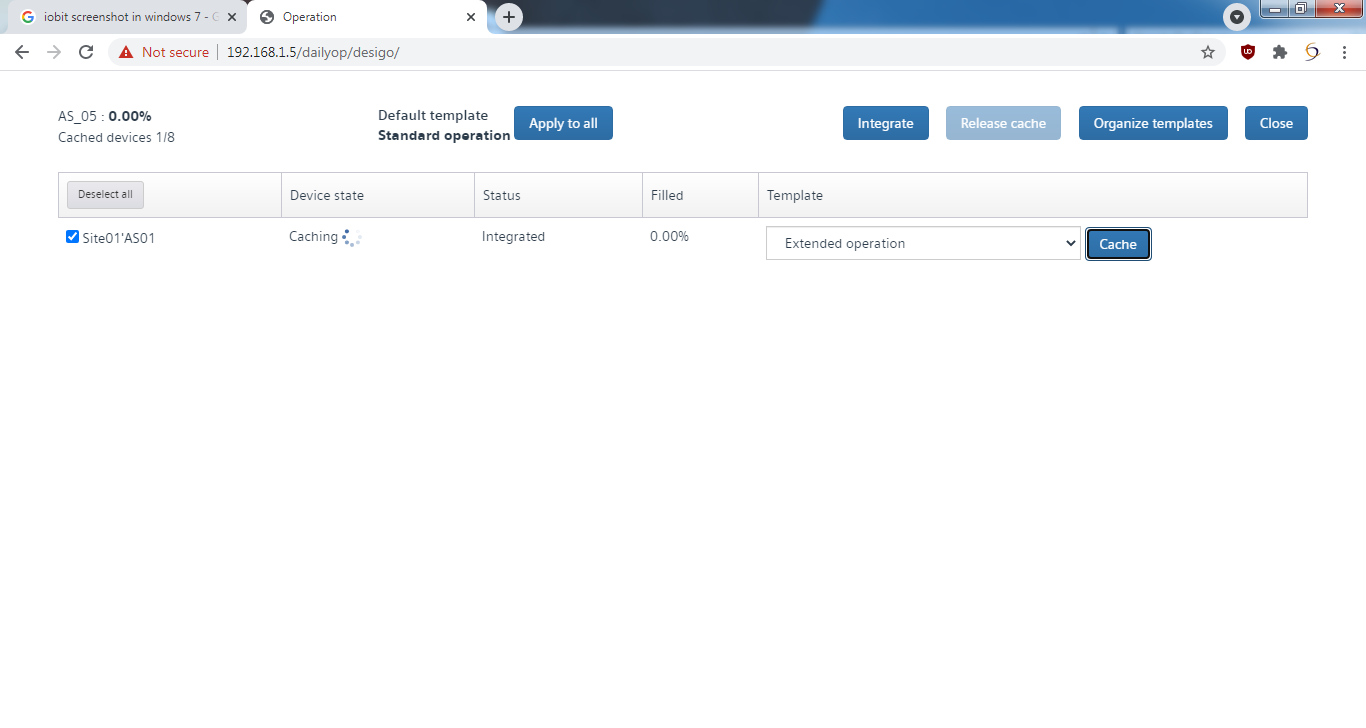

Step 12 : Click the Cache Button for Collect the Data's from PXC-Controller , its takes few minutes.

Step 13 : If the "Device State" is Ready , Next click the Integrate Button.

Step 14 : It Import the Data's from PXC-Controller its take few Minutes.

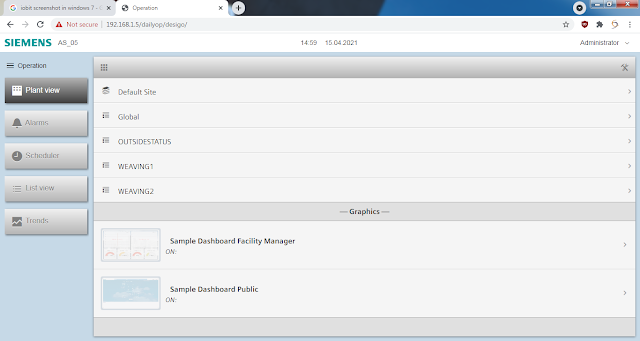

Step 15 : After Integrating is completed when the Status will show "Integrated" and 7.10 % percentage of Data's is Filled in the PXG WEB-Interface Unit.

Step 16 : When the All Programmed Data's will import from PXC (PLC) Controller  to PXG WEB unit . Only the Main Data is import to the device , Next process we create the Graphical and Set point Pages.

Next Article we will discuss about How to create the Graphical and Setpoint Page in Siemens SCADA System.
