In This Article we are going to see Siemens RDF300, RDF340, RDF600 Room Thermostat Parameter List Part-1 Service Level.
 |
| SIEMENS RDF300 |
Control Parameter
 |

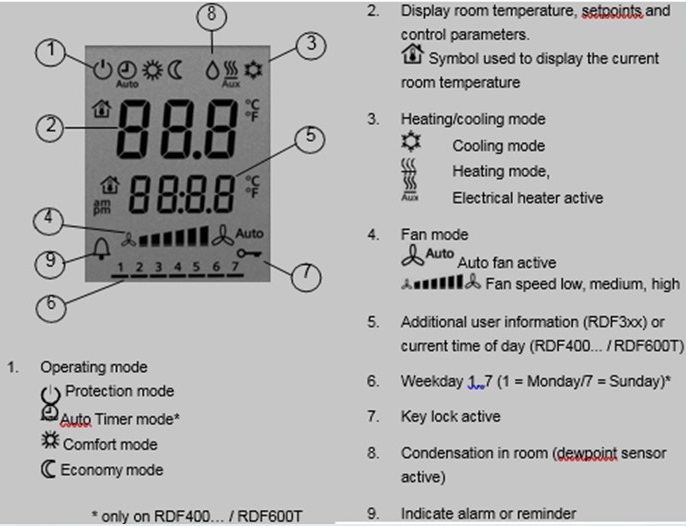

| Display |
 |
| Control Parameter |
P01
Description : Control Sequence
Factory Setting :
2-pipe, single duct [0 to 3] 1 (Cooling only)
4-pipe, [2 to 4] 4 (Heating & Cooling)
Setting Range :
0 = Heating only
1 = Cooling only
2 = Manual H or C
3 = Auto Changeover
4 = Heating & Cooling
P02
Description : Mode selection by user via operating mode button
Factory Setting : 1 (Protection, Comfort)
Setting Range :
1 = Protection, Comfort
2 = Protection, Comfort, Economy
P04
Description : Selection of °C or °F
Factory Setting : °C
Setting Range : °C or °F
P05
Description : Sensor Calibration
Default Value : 0.0 K
Setting Range : -3 to +3 K
P06
Description : Standard Temperature display
Default Value : 0 (Room Temp.)
Setting Range :
0 = Room Temperature
1 = Setpoint
P07
Description : Additional user information
Default Value : 0 (No Display)
Setting Range :
0 = No display
1 = Temperature in °C / °F
P08
Description : Comfort basic Setpoint
Default Value : 21 °C
Setting Range : 5 to 40 °C
P09
Description : Minimum Setpoint limitation in comfort (W-Min comfort)
Default Value : 5 °C
Setting Range : 5 to 40 °C
P10
Description : Maximum Setpoint limitation in comfort (W-Max comfort)
Default Value : 35 °C
Setting Range : 5 to 40 °C
P11
Description : Setpoint of heating in Economy mode (W-heat Eco)
Default Value : 15 °C
Setting Range : OFF, 5 °C W-cool Eco
P12
Description : Setpoint of cooling in Economy mode (W-cool Eco)
Default Value : 30 °C
Setting Range : OFF, 40 °C W-heat Eco
P13
Description : Electric heater in cooling mode
Default Value : ON
Setting Range :
OFF = Disabled
ON = Enable
P14
Description : Button Lock (press operating mode button for 7 seconds to lock or unlock the button)
Default Value : 0 (Disable)
Setting Range :
0 = Disabled
1 = Auto Lock
2 = Manual Lock
