In This Article we are going to see SIEMENS RDD 10.0 Room Temperature Controller with LCD Display for Heating system device overview.
 |
| SIEMENS RDD 10.0 Room Temperature Controller |
Use :
This is used for 2-position control with ON / OFF output for heating.
Operating modes: normal operation and energy saving mode Automatic operating mode change over as an option.
Typical applications: Apartments , Commercial spaces , Schools
For the control of the following pieces of equipment: Thermic valves or zone valves , Gas or oil burners , Fans , Pumps
Function :
The controller acquires the room temperature with its integrated sensor and maintains the setpoint by delivering control commands. The switching differential is 1 K.
Display : |
Mechanical design :
The unit consists of two parts:
• A plastic housing with digital display, which accommodates the electronics, the operating elements and the built-in room temperatures sensor
• A mounting base
Mounting :
- When mounting the unit, fix the baseplate first. Then, make the electrical connections and fit and secure the cover .
- The controller must be mounted on a flat wall and in compliance with local regulations. If there are thermostatic radiator valves in the reference room, they must be set to their fully open position.
 |

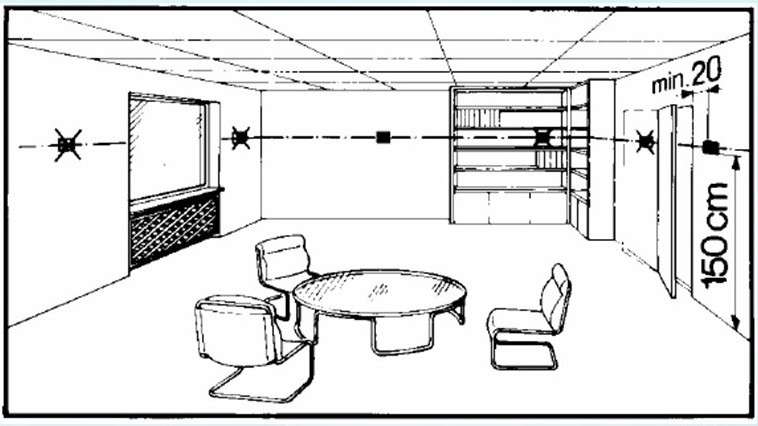

| Mounting Instructions |
- The room temperature controller should be mounted in a location where the air temperature can be measured as accurately as possible without getting adversely affected by direct solar radiation or other heat or refrigeration sources.
- Mounting height is about 1.5 m above the floor.
Sensor calibration :
If the temperature on the display does not agree with the room temperature effectively measured, the temperature sensor can be re calibrated.
For that purpose, both buttons + and mode changeover button must be pressed simultaneously for 3 seconds.
Then, the temperature displayed can be changed by a maximum of +/- 3 Kelvin by pressing the + and - buttons.
Five seconds after the last push of a button, the controller will automatically return to the normal operational statuses.
 |
Change of batteries :
If the battery symbol appears, the battery power is almost exhausted and the batteries should be replaced.
Technical data
Operating voltage for RDD10 model Room Temperature Controller is AC 230 Volt plus10 or minus 15%,
Frequency is 50 Hz or 60Hz ,
Power consumption for RDD10 is 4 VA
Operating voltage for RDD10.1 model Room Temperature Controller is DC 3 Volt (2 x 1.5 Volt alkaline batteries AAA).
Control output Q12 (NC contact) :
Rating of RDD10 for AC 230 volt controller is Maximum 5 amps to Minimum 2 amps and
Rating of RDD10.1 for Ac 24 to 250 Volt controller is Maximum 5 amps to Minimum 2 amps
Control output Q14 (NO contact) :
Rating of RDD10 for AC 230 volt controller is Maximum 5 amps to Minimum 2 amps and
Rating of RDD10.1 for Ac 24 to 250 Volt controller is Maximum 5 amps to Minimum 2 amps ,
Switching differential SD is 1K
Function data :
Setpoint setting range is 5 to 35 °C normal operation 0 (OFF) and 5 to 35 °C energy saving mode.
Increments is 0.5 °C
Factory setting normal operation is 20 °C
Factory setting energy saving mode is 8 °C
Setting range of operating mode :
Changeover time is 0.5 to 24 hour
Increment is 0.5 hour
Factory setting is 0 hour (not activated)
Environmental conditions :
Operation is As per IEC 721-3-3
Climatic conditions is Class 3K5
Temperature is 0 to 50 °C
Humidity is less than 95% RH
Transport is As per IEC 721-3-2
Climatic conditions is Class 2K3
Temperature is –minus 25 to plus 60 °C
Humidity is less than 95% RH
Mechanical conditions is Class 2M2
Storage is As per IEC 721-3-1
Climatic conditions is Class 1K3
Temperature is –minus 25 to plus 60 °C
Humidity is less than 95% RH
Weigh is 0.20 kg
Colour of housing front is white NCS S 0502-G RAL9003
 |
| Dimension |
Dimension is Height 119 mm , width 96 mm , depth 23.8 mm
